Set up a mirror to pull telemetry data from an external system
StackState Self-hosted v4.6.x
StackState supports fetching external telemetry and mapping this onto components as metric streams, for instance with the AWS StackPack and CloudWatch. In this scenario, StackState pulls telemetry data from CloudWatch on-demand when required for StackState server processes or the StackState GUI. The telemetry data from CloudWatch is not copied into StackState, but retrieved and used when needed. This concept is called mirroring and is further described in the StackState documentation.
Mirror integrations can be built in any language and run as a separate process. A mirror can:
- retrieve telemetry data from external systems on-demand
- aggregate this data in various ways
- send the data in a standard format to StackState
To integrate StackState with an external telemetry source using mirroring, the mirror integration sits in between StackState and the telemetry source. The mirror offers a standard interface (the mirror API) to StackState so that StackState can use multiple different mirror data sources out of the box. The mirror integration translates calls to the mirror API to calls to a telemetry datasource, allowing StackState to access telemetry data in a standard way.
Clone the repository to your laptop to get started.
For this demo, your StackState instance needs to be able to connect with the mirror running on your local laptop. This can be done by running StackState on your laptop as well, or by exposing your laptop to the internet using
Start by running the sample mirror. This directory contains a Python mirror server:
The sample mirror server listens for requests on port

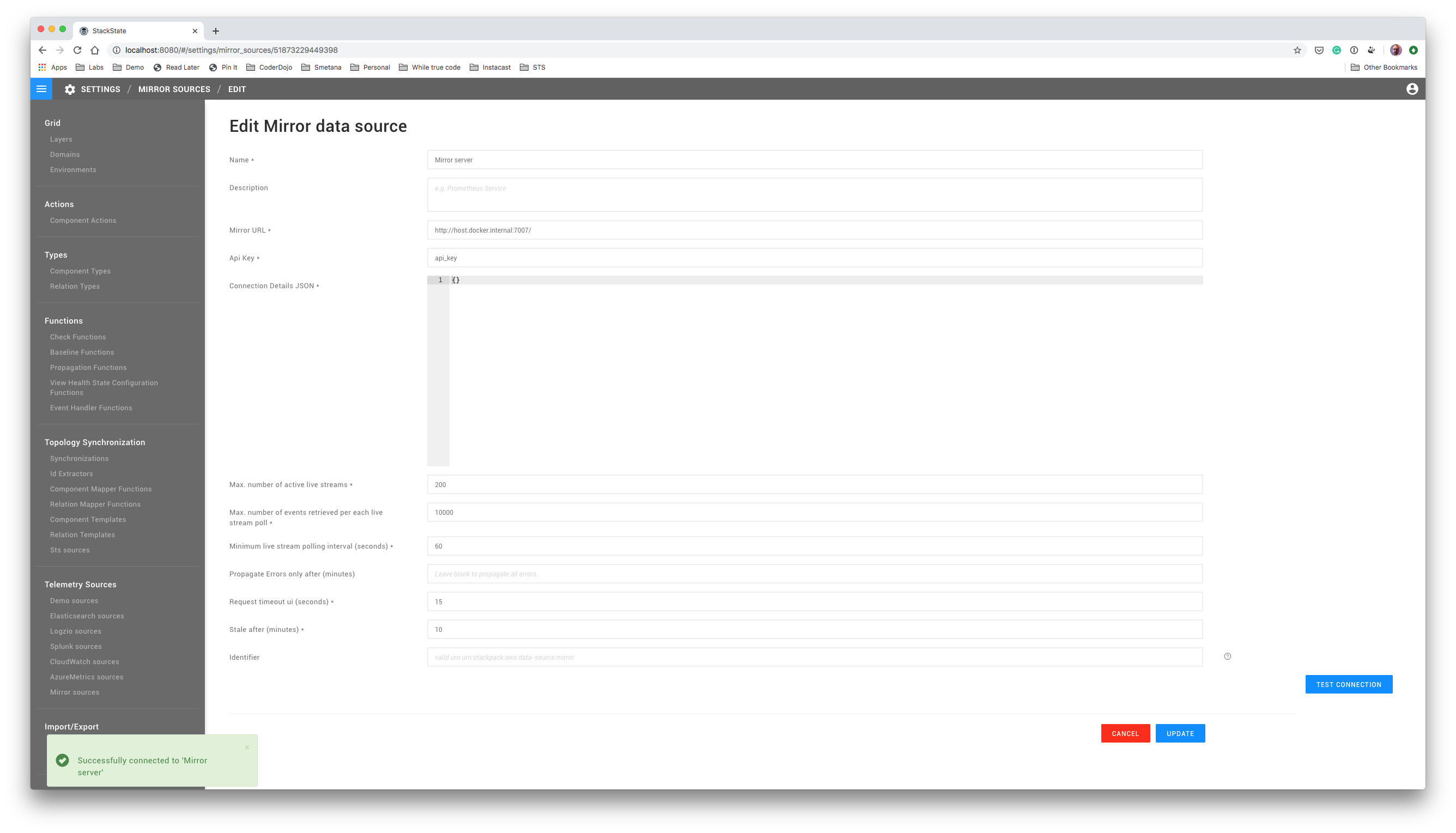

In StackState, navigate to the Settings page and find Mirror sources in the Telemetry Sources section. Create a new mirror data source with the following parameters:
- Name: Mirror server
- Mirror URL: URL to connect to the mirror, use
host.docker.internalif you are running everything on your laptop, or the
ngrokURL if you are using it to expose your laptop to the internet
- Api Key:
- Connection details JSON: a JSON datastructure that specifies how the mirror can connect to the external source. In our example, you can use an empty JSON object:
Use the Test Connection button to verify connectivity from StackState to the mirror.
Here is what that looks like:
In the Telemetry section, click ADD NEW STREAM. This opens the Stream Wizard and allows you to add a new stream. Enter mirror sample as the name for the stream and select the Mirror server datasource.

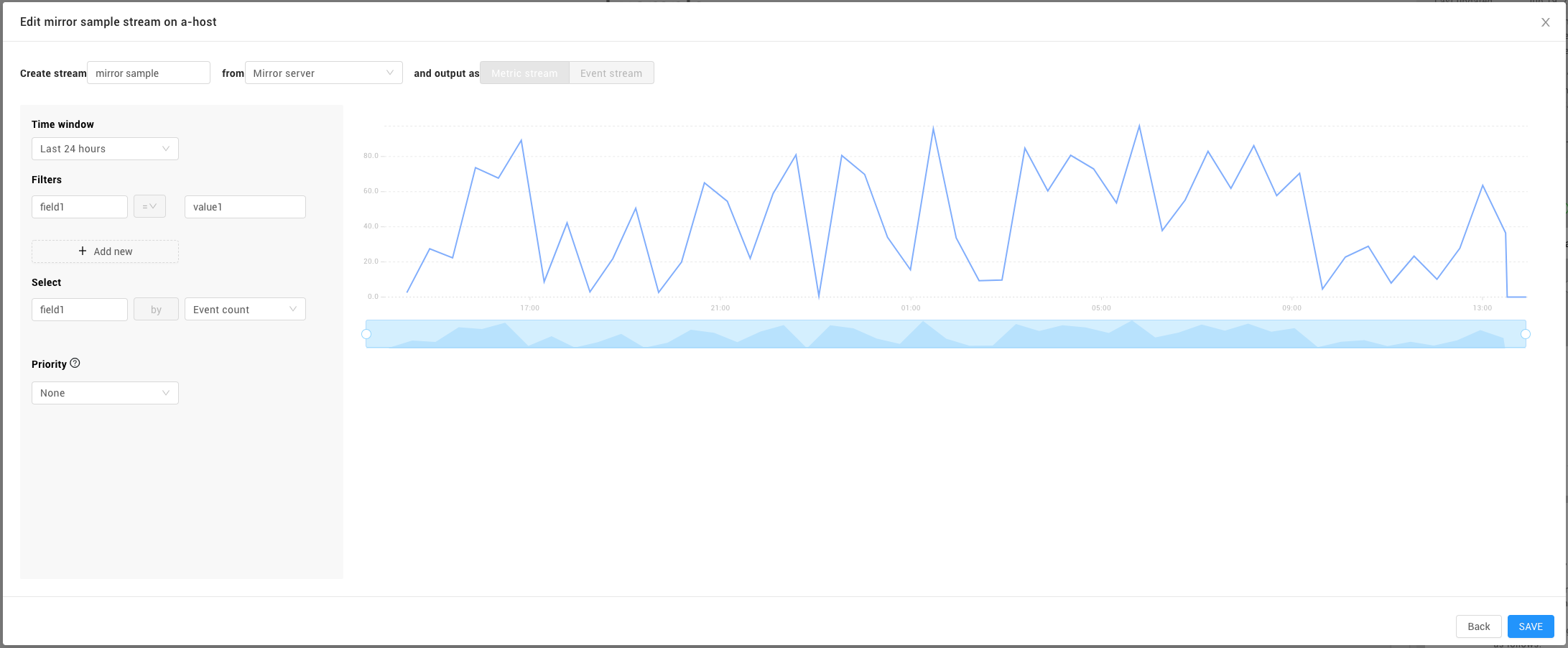

In the Stream Creation screen, you should see random data right away. You can play around with the filter fields and values but they won't affect the returned data.
Here is what that looks like:
Click on the Save button to permanently add the stream to the a-host component.
When you are done with this tutorial, you can remove the configuration from your StackState instance as follows:
- Remove the mirror data source you added
