Overview
The View Filters pane on the left-hand side of the StackState UI allows you to filter the components (topology), events and traces displayed in each perspective. Applied filters can be saved as a view to open directly in the future.
View filters
Filter Topology
Topology filters can be used to select a sub-set of topology components to be shown in any one of the available perspectives. You can browse your topology using basic filters or build an advanced topology filter that zooms in on a specific area of your topology using the StackState in-built query language (STQL). Read more about:
Basic topology filters
The main way to filter topology is using the available basic filters. When you set a filter, the open perspective will update to show only the visualization or data for the subset of your topology that matches the filter. Setting multiple filters will narrow down your search further. You can set more than one value for each filter to expand your search
Filter
Description
Layers, Domains, Environments and Component types
Filter by the component details included when components are imported or created.
Component health
Component labels
Only include components with a specific label.
Include components
Components named here will be included in the topology in addition to the components returned from other filters.

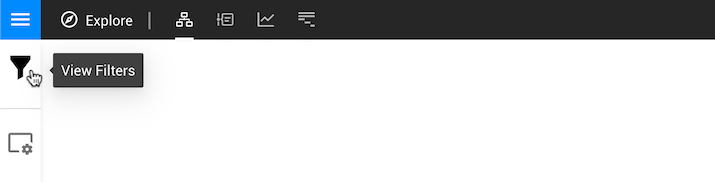

To filter the topology using basic filters, click on the View Filters button on the left of the screen and select Basic under Filter Topology.
The example below uses basic filters to return components that match the following conditions:
- In the Domain
security check - AND has a Health state of
ClearORDeviating - OR is the Component with the name
ai_engine

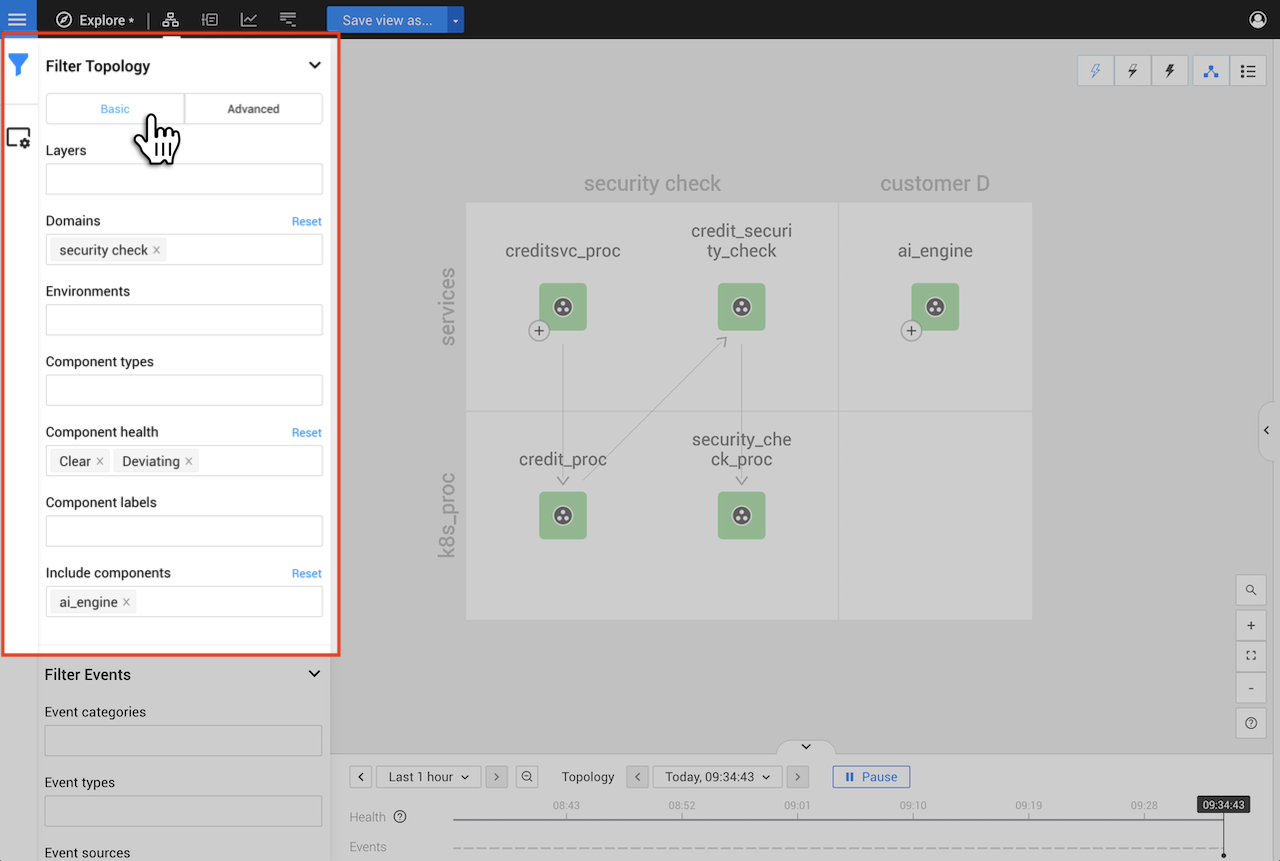

Filtering example
This same filter could also be written as an advanced topology filter using STQL.
Advanced topology filters
You can use the in-built StackState Query Language (STQL) to build an advanced topology filter that zooms in on a specific area of your topology.
To filter the topology using an STQL query, click on the View Filters button on the left of the screen and select Advanced under Filter Topology.
The STQL query example below will return components that match the following conditions:
- In the Domain
security check - AND has a Health state of
ClearORDeviating - OR is the Component with the name
ai_engine
1
(domain IN ("security check") AND healthstate IN ("CLEAR", "DEVIATING")) OR name IN ("ai_engine")
Copied!

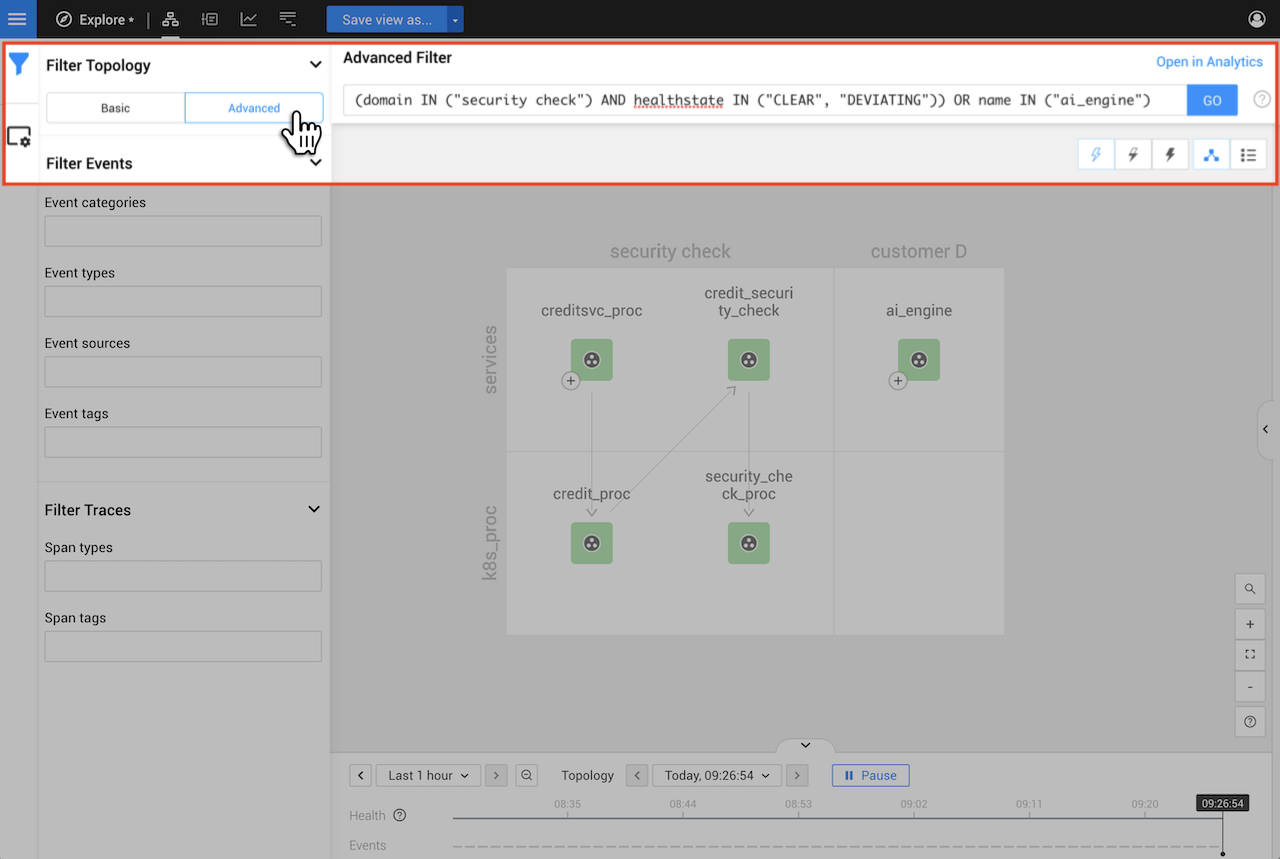

Filtering (advanced filter)
Compatibility of basic and advanced filters
You can switch between basic and advanced filtering by selecting Basic or Advanced under Filter Topology in the View Filters pane.
It is always possible to switch from Basic to Advanced filtering. The selected basic filters will be converted directly to an STQL query. For simple queries it is also possible to switch from Advanced to Basic filtering, however, some advanced queries are not compatible with basic filters.
Other filters
Some advanced filtering options are compatible with basic filtering, but cannot be set or adjusted as a basic filter. When these advanced filters are set in a way that is compatible with basic filtering, the box Other filters will be shown in the View Filters pane with details of the affected components:
- withNeighborsOf - when an advanced filter contains the function withNeighborsOf, the number of components whose neighbors are queried for is shown in the Other filters box. To be compatible with basic filtering, a
withNeighborsOffunction must be joined to other filters using anORoperator. - identifier - when an advanced filter filters components by identifier, the number of component identifiers queried is reported in the Other filters box. To be compatible with basic filtering, an
identifierfilter must be specified and joined to other filters using the operatorOR identifier IN (...).
The Other filters box will only contain details of advanced filters that have been set and are compatible with basic filtering.
Topology filtering limits
To optimize performance, a limit is placed on the amount of elements that can be loaded to produce a topology visualization. The filtering limit has a default value of 10000 elements. If a basic filter or advanced filter query exceeds the filtering limit, a message will be shown on screen and no topology visualization will be displayed.
Note that the filtering limit is applied to the total amount of elements that need to be loaded and not the amount of elements that will ultimately be displayed.
In the example below, we first LOAD all neighbors of every component in our topology and then DISPLAY only the ones that belong to the
applications layer. This would likely fail with a filtering limit error as it requires all components in the topology to be loaded.1
withNeighborsOf(direction = "both", components = (name = "*"), levels = "15")
2
AND layer = "applications"
Copied!
To successfully produce this topology visualization, we would need to either re-write the query to keep the number of components loaded below the configured filtering limit, or increase the filtering limit. By fitering for only components in the
applications layer, we will DISPLAY the same components as the query above, without first needing to LOAD all components. This query is therefore less likely to result in a filtering limit error.1
layer = "applications"
Copied!
Filter Events
The View Filters pane on the left-hand side of the StackState UI can be used to filter the events shown in the Events Perspective and in the Event list in the View Details pane on the right of the StackState UI.
The following event filters are available:
Filter
Description
Category
Type
Click on the Type filter box to open a list of all event types that have been generated for the currently filtered components in the current time window. You can select one or more event types to refine the events displayed.
Source
Events can be generated by StackState or retrieved from an external source system, such as Kubernetes or ServiceNow, by an integration. Click on the Source filter box to open a list of all source systems for events that have been generated for the currently filtered components in the current time window. Select one or more source systems to see only those events.
Tags
Relevant event properties will be added as tags when an event is retrieved from an external system. For example
status:open or status:production. This can help to identify events relevant to a specific problem or environment.Filter Traces
Traces shown in the Traces Perspective can be filtered based on two properties of the spans they contain:
- Span types
- Span tags
For example, if you filter the trace list for all spans of type
database, this will return all traces that have at least one span whose type is database.Save filters as a view
To update the existing view with the currently applied filters, click Save view at the top of the screen. To save the current filters as a new view, click Save view as.
Clear applied filters
To clear any filters you have added and return to the saved view filters or initial clean state, click on the view name at the top of the screen. Alternatively, you can select Reset view from the Save view dropdown menu at the top of the screen, or Reset from the ... menu in the View details pane on the right of the screen.
