Add a health check
StackState Self-hosted v5.1.x
Health checks report a health state for elements (components and relations). The health state can either be calculated internally by StackState based on data from telemetry streams or synchronized with an external monitoring system.
The combined check states attached to an element are used to calculate its overall health status. When the status of an element changes, a state change event is generated. These events can be used to trigger event notifications and actions.
Most elements in the StackState topology will have a relevant health check added when they're created. If required, you can also add custom health checks that calculate a health state in StackState based on available telemetry streams or synchronize health data from an external monitoring system.
To add a health check calculated in StackState:
- 1.Select the element that you want to assign a health check to.
- Detailed information about the element will be displayed in the right panel details tab - Component details or Direct relation details depending on the element type that you selected.
- 2.Click ADD NEW HEALTH CHECK under Health in the right panel details tab.
- 3.In the Add check dialog box, enter the following details:
- Name - The health check name. Will be displayed in the StackState UI right panel details tab Health section.
- Description - Optional, can be used to explain the check in greater detail.
- Remediation hint - Optional, will be automatically displayed on the element when this check goes to a non-clear state, for example
- 4.Provide the required check function arguments, these will vary according to the check function selected, but will include:
- 5.Click CREATE to create the health check.
- The check is now active and visible under the Health section on the right.
- The check will remain gray until enough telemetry data has been received to determine a health state.

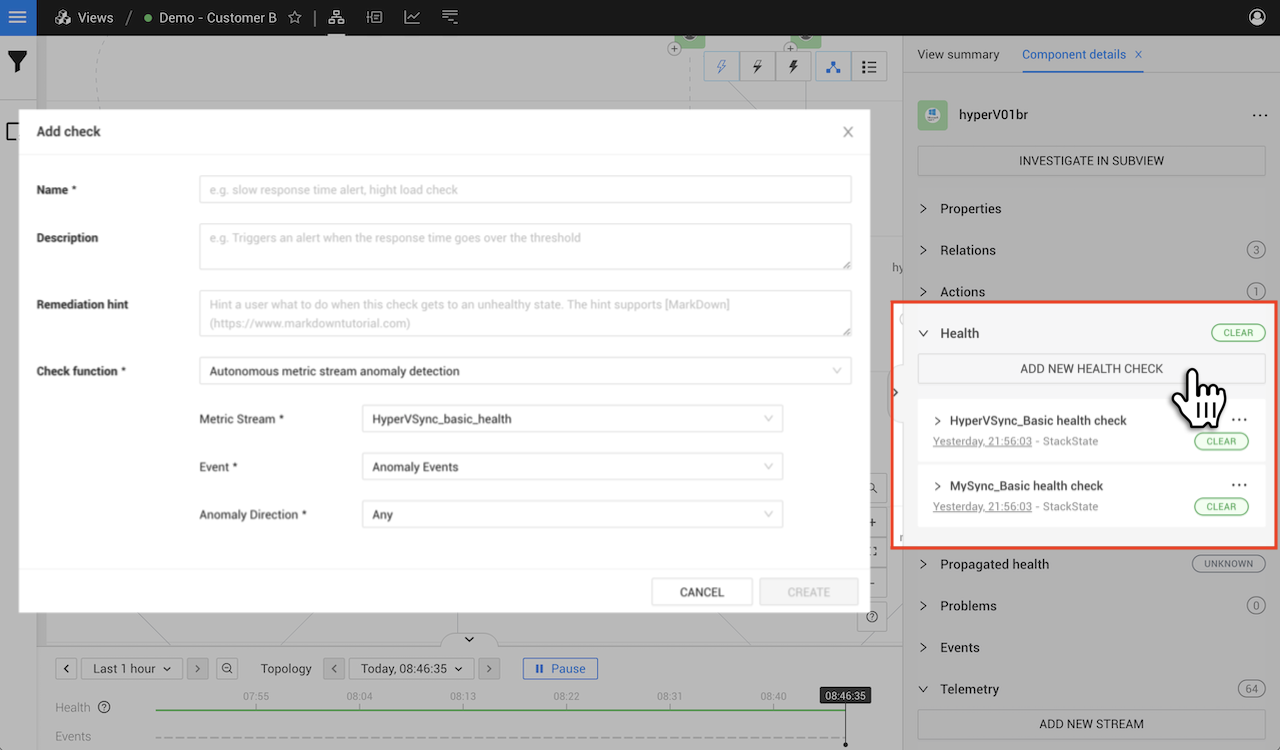

Add a health check to an element
For metrics check functions, a windowing method and window size must be provided. This determines how often the check function will run based on the incoming metrics. There are two possible windowing methods, batching and sliding.
By default, the time window is 300000 milliseconds (or 5 minutes). The time window will directly influence the number of positive or false negative alerts. The longer you configure the time window, the less sensitive it will be. However, if it's too short this may lead to a sudden spike in unwanted alerts, which might not help you meet your SLO. You should balance the time window based on the metric and how early you want to be alerted on spikes.
Each health check calculated in StackState uses a check function to monitor the telemetry stream attached to the element.
Check functions are scripts that take streaming telemetry as an input, check the data based on its logic and on the supplied arguments and output a health state. The telemetry changes a check function responds to determine the way in which the health check reports element health state, for example by monitoring a metric stream for thresholds and spikes, or checking the generated events. A number of check functions are included out of the box with StackState.
Autonomous metric stream anomaly detectionhealth check reacts to anomaly events and sets the component health state to the
