Set the logging level for an instance of a StackState function
Overview
For debugging purposes, it may be helpful to enable logging for a StackState function. You can add logging statements to functions and then use the StackState CLI to set the logging level for individual instances of a check function, event handler function, propagation function or view state configuration function. Log messages will be added to the StackState log file stackstate.log. It is not currently possible to enable logging for other function types.
Set the logging level for a function instance
To enable logging for an instance of a function, use its ID to set a logging level in the StackState CLI. Note that the function itself will have an ID and each instance of the function relating to a component or view in StackState will have a separate ID.
The logging level should be set using the ID for an instance of a function, not the ID of the function itself.
1.Find the ID for the instance of the function that you want to enable logging for:
​Check IDs​
​Event handler IDs​
​Propagation IDs​
​View health state configuration IDs​
2.Use the StackState CLI to set the logging level for the ID, for example:
1
sts serverlog setlevel <id> DEBUG
Copied!
3.Monitor the stackstate.log using the function instance ID.
1
tail -f stackstate.log | grep <id>
Copied!
Add logging statements to a function
Logging statements can be added to StackState functions and monitored in the stackstate.log file. This is useful for debug purposes.
1.Add a log statement in the function's code. For example:
log.info("message")
log.info(variable.toString())
2.​Set a logging level to enable logging for an instance of the function.
Find the ID for a function instance
Retrieve the ID for a specific instance of a function:
​Check IDs​
​Event handler IDs​
​Propagation IDs​
​View health state configuration IDs​
StackState CLI
Event handler IDs
The ID for an event handler can be found using the StackState CLI. This is the ID for an instance of an event handler function.
To list all event handlers, run the StackState CLI command below.
Use the id from the command output to enable logging for a specific event handler.
CLI command
Example result
1
sts graph list EventHandler
Copied!
1
             id  type          name          description    owned by    manual    last updated
2
---------------  ------------  ------------  -------------  ----------  --------  ------------------------
3
114118706410878  EventHandler  demo_handler                             True      Fri Nov 13 11:32:29 2020
Copied!
View health state configuration IDs
The ID for a view health state configuration can be found using the StackState CLI. This is the ID for a view's instance of a view health state configuration function.
Run the two StackState CLI commands below:
1.To return the IDs of all StackState views.
2.To retrieve the JSON for a specific view ID.
Use the viewHealthStateConfiguration ID from the retrieved view JSON to enable logging for this instance of the view health state configuration function. In the example below, this would be 39710412772194.
CLI command
Example result
1
# get IDs of all views
2
sts graph list QueryView
3
​
4
# get the ID of the specified view's "viewHealthStateConfiguration"
5
sts graph show-node <VIEW_ID>
Copied!
1
$ sts graph list QueryView
2
             id  type       name                       description    owned by                      manual    last updated
3
---------------  ---------  -------------------------  -------------  ----------------------------  --------  ------------------------
4
  9161801377514  QueryView  Demo - Customer A          -              urn:stackpack:demo-stackpack  False     Fri Nov 13 16:24:38 2020
5
199988472830315  QueryView  Demo - Customer B          -              urn:stackpack:demo-stackpack  False     Fri Nov 13 16:24:38 2020
6
278537340600843  QueryView  Demo - Business Dashboard  -              urn:stackpack:demo-stackpack  False     Fri Nov 13 16:24:38 2020
7
​
8
​
9
$ sts graph show-node 9161801377514
10
​
11
{
12
   "id":9161801377514,
13
   "lastUpdateTimestamp":1605284678082,
14
   "name":"Demo - Customer A",
15
   "groupedByDomains":true,
16
   "groupedByLayers":true,
17
   "groupedByRelations":true,
18
   "showIndirectRelations":true,
19
   "showCause":"NONE",
20
   "state":{
21
      "id":212230744931364,
22
      "lastUpdateTimestamp":1605284689666,
23
      "state":"CLEAR",
24
      "_type":"ViewHealthState"
25
   },
26
   "viewHealthStateConfiguration":{
27
      "id":39710412772194,
28
      "lastUpdateTimestamp":1605284678082,
29
      "function":28286436254116,
30
      "enabled":true,
31
      "arguments":[
32
         {
33
            "id":128484527572993,
34
            "lastUpdateTimestamp":1605284678082,
35
            "parameter":184761614904259,
36
            "value":1,
37
            "_type":"ArgumentLongVal"
38
         },
39
         {
40
            "id":229304367255010,
41
            "lastUpdateTimestamp":1605284678082,
42
            "parameter":178411912509267,
43
            "value":1,
44
            "_type":"ArgumentLongVal"
45
         }
46
      ],
47
      "_type":"ViewHealthStateConfiguration"
48
   },
49
   "groupingEnabled":true,
50
   "minimumGroupSize":4,
51
   "query":"(domain IN (\"customer E\") AND layer IN (\"API\", \"applications\", \"business application\", \"hypervisor\", \"databases\", \"k8s_proc\", \"lambda\", \"network devices\", \"location\", \"rack\", \"row\", \"servers\", \"services\", \"storage\"))",
52
   "queryVersion":"0.0.1",
53
   "identifier":"urn:stackpack:demo-stackpack:query-view:demo-customer-e",
54
   "ownedBy":"urn:stackpack:demo-stackpack",
55
   "eventTypes":[
56
​
57
   ],
58
   "tags":[
59
​
60
   ],
61
   "spanTypes":[
62
​
63
   ],
64
   "_type":"QueryView"
65
}
Copied!
StackState UI
Check and propagation IDs
The ID for a check or propagation on a specific component can be found in in the StackState UI. These are the IDs for the component's instance of a check function or propagation function.

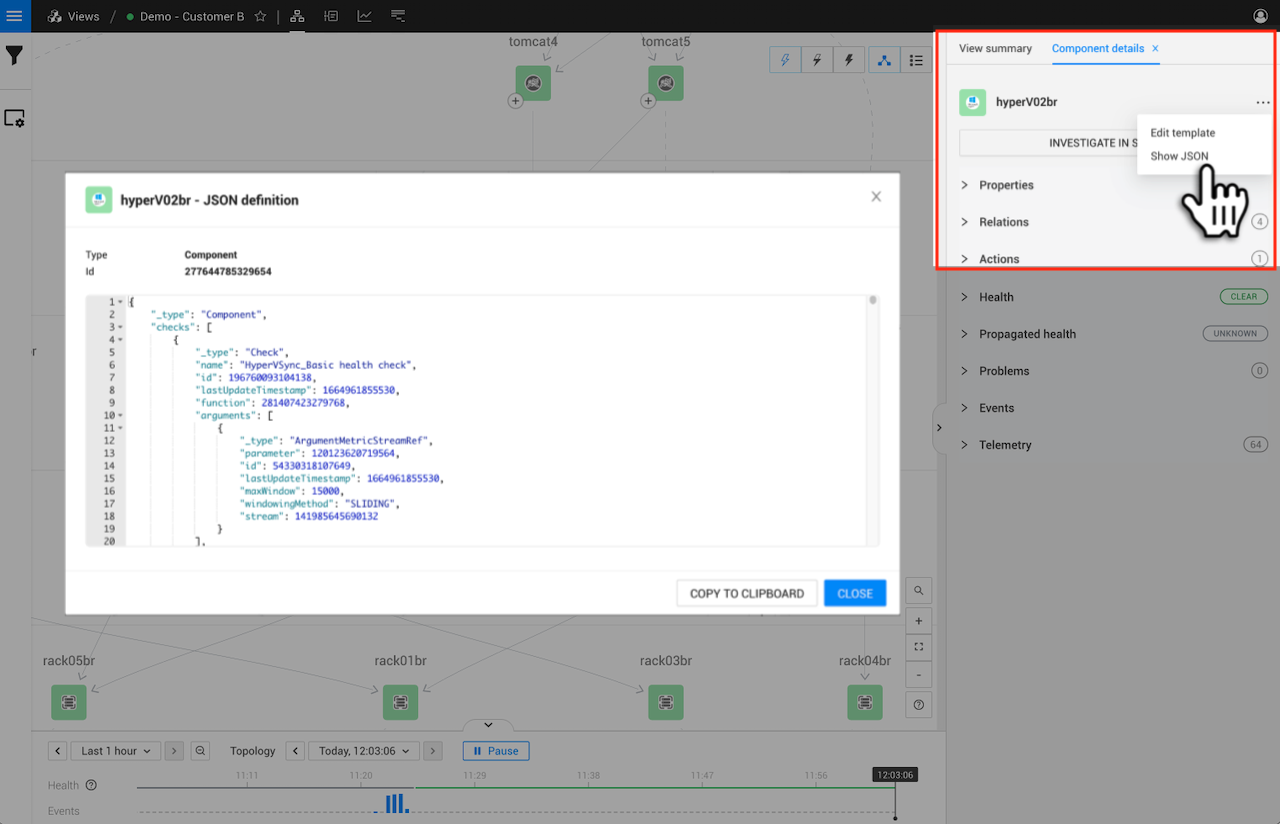

1.Click on a component to open the component details on the right of the screen.
2.Click on ... and select Show JSON.
3.Find the section for "checks" or "propagation".
4.Find the check or propagation that you want to enable logging for and copy the value from the field id.
Show JSON
Use the ID to enable logging for the component's check or propagation functions.
See also
​StackState CLI​
​Check functions​
​Event handler functions​
​State propagation and propagation functions​
​View state configuration functions​
